Graco Quantm i80 Series 1,5" Double Diaphragm Electric Operated Pumps

GRACO QUANTM ELECTRIC OPERATED DOUBLE DIAPHRAGM PUMPS

Designed to meet the growing demand for clean energy and sustainable technologies, the QUANTM series of electric operated double diaphragm pumps are the world's first (and only) affordable electrically operated double diaphragm (EODD) pumps manufactured to minimize energy consumption by reducing energy use and costs by up to 80%. Innovative new FluxCore motors and drivers provide up to 8x more sustained torque at low speeds while minimizing size and resistance losses. These revolutionary pumps are easy to clean and maintain and require less energy to operate due to their small electric motor; this provides a lower investment cost. Graco's sealless, self-priming diaphragm pump design offers clear advantages over all other pumps, including centrifugal, lobe, gear, mono, peristaltic, and piston pump technologies.

A GREAT BREAKTHROUGH IN ELECTRICALLY OPERATED DOUBLE DIAPHRAGM PUMP TECHNOLOGY WITH GRACO QUANTM SERIES PUMPS.

� Quieter operation and less footprint, easier installation and service; its unique design saves energy in less than a year, thus meeting the investment cost.

� It is possible to supply efficient, cost-effective spare parts with competitive prices compared to air operated diaphragm pump technologies, reducing energy costs by up to 80%.

� The only pressurized, on-load electric diaphragm pump that eliminates the need for pressure sensors and additional controls to prevent pump failures and reduce downtime.

� Integrated frequency inverter provides remote operation, automation control and speed control to minimize operator surveillance

� Intelligent control technology on the board of the pump special motor, adjusts the pump speed to help fill the pump at first starts or to prevent dry running cavitation that damages the pumps, and performs automatic acceleration starting from slow operation.

� Offers plug-and-play installation to switch to fast, easy and affordable fluid transfer processes

� Provides clear advantages over other pumps, including centrifugal, lobe, gear, progressive cavity ( mono ), peristaltic and piston pump technologies.

General Features of GRACO QUANTM Pumps

The Graco QUANTM i80 with 38.1 mm (1,5 in) fluid port is Graco's revolutionary new electrically operated double diaphragm (EODD) pump, ideal for the need for fluid transfer offers a solution for reducing energy, the largest cost variable for factories or manufacturing facilities focused on meeting sustainability goals. An i80 pump can help you achieve a return on investment in 12 months or less, while complying with increasingly demanding regulations and delivering significant life-cycle savings.

Upgrade your existing air-powered pumps to a new reliable QUANTM i80 electric pump or customize as part of a new plant initiative.

With a 38.1 mm (1,5 in) fluid port and a maximum flow rate of 303 l/min (80 g/min) and a powerful new FluxCore motor and driver that delivers up to 8 times more continuous torque at low speeds than conventional electric motors, the i80 will be on your production lines, has the skills to perform most fluid transfer jobs to be the productive workforce you need. In addition, the quick and easy plug-and-play installation, simply plugging into any 220 V three phase outlet, allows you to easily replace existing pumps without additional investment or re-infrastructure work.

� Wide operating range and material compatibility; Works with abrasives, solids, aggressive chemicals and liquids that are susceptible to disintegration

� Up to 80% more efficient than air operated double diaphragm pumps and 50% more efficient than competing electrical technologies; Eliminates the need for fossil fuel, hydraulics and air power

� The FluxCore Driver Module Control includes a simple button that adjusts pump speed, LED indicating status and trouble codes, and software necessary for pump operation.

� Due to the removal of the gearbox, the floor space required is minimal compared to other electric options, as it is similar in size to existing air diaphragm pumps.

� It has a self-priming and leak-free design that minimizes maintenance and spare parts costs.

� The only electric diaphragm pump on the market that reduces speed under pressure, eliminating the need for pressure sensors and an additional control unit and reducing downtime by preventing pump failures due to clogged lines or closed valves.

� Diaphragm rupture sensor is available as an option.

Advantages of QUANTM Pumps

Graco QUANTM series pumps are not just an electric operated pump, they are a game changer. QUANTM's revolutionary electric motor design reduces operating costs and provides the reliability to keep your production lines running. With a choice of multiple fluid contact materials including different construction materials, QUANTM is ideal for most fluid applications as a highly reliable replacement for your existing less efficient pneumatic pumps or an excellent option for ground-breaking businesses. The unique self-priming, seal-less design ensures smooth and constant flow and is the only electric diaphragm pump on the market that can stand under pressure and stand on load to reduce downtime caused by pump failures from clogged lines or closed valves.

QUANTM is designed to be quieter, more efficient and ultra-reliable while offering energy savings that will greatly help strengthen your sustainability reputation. The time has come to rethink your pump strategy and increase your profitability by switching to a QUANTM electric pump.

The fluid section, which is made of materials such as Polypropylene, PVDF, Acetal, Aluminum, Stainless Steel, and HastalloyC, all of which are fluid-friendly, is specially designed to be wear-resistant while providing light corrosion resistance. With up to 8 times more continuous torque at low speeds than conventional motors, this general purpose electric pump is an energy saving product ideal for tank emptying applications as well as applications related to the discharge of petroleum products (new and waste oils) and solvents. This powerful new pump offers a higher level of reliability to minimize downtime, while its plug-and-play design allows it to be easily incorporated into any production line without additional investment or infrastructure rework. Not designed for use with halogenated hydrocarbons.

� Revolutionary Design

o Replace existing air-powered pumps with electric pump technology that is pressurized and includes AutoPrime

o Patented FluxCore drive removes the gearbox in conventional electric pumps, providing a small installation space comparable to a pneumatic diaphragm pump

o Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a fast return on investment

o Quiet operation reduces plant noise and improves worker safety and health

o Intelligent pump control provides more accurate flow setpoints and built-in automation controls

� FluxCore Motor

o Powder coated aluminum FluxCore drive

o 4.5 m (15 ft) open-ended 240 VAC 3Φ motor

o CID1 Groups C,D,T4 Zone 1 AEx d b IIB T4 Gb hazardous location approval

� Construction materials

o NPT and BSP connection are standard on metal pumps. On the plastic models, there is a 1,5� flange connection.

o Body material options that come into contact with the fluid are 316 stainless steel, Aluminum, Polypropylene or PVDF.

o Diaphragm, ball valve and valve seat alternatives available in all other air Husky series pumps are also available for Quantm pumps as in the tables below.

Graco QUANTM i80 Series Electric Diaphragm Pump Technical Details

General Performance Values
Max Fluid Pressure	6,9bar, 690 kPa, 100 psi
MaxFlow	303 lt/min
Max Amperage	15 A
Motor Type	FluxCore
Voltage	200-240 V AC (3 phase )
Frequency	50 � 60 Hz
Max suction lift	5,9 m ( dry ) 8,8 m ( wet )
Max solid particle size	4,8 mm
Max operational fluid temperature	82�C
Max ambient temperature	40�C
Fluid Inlet Size	1,5� bsp / npt (f) ( metal models) DN 40 Flange ( plastic models)
Fluid Outlet Size	1,5� bsp / npt (f) ( metal models) DN 40 Flange ( plastic models)

Weight Information
Aluminium Pump	32,2 kg
Stainless Steel Pump	50,8 kg
PVDF Pump	38,5 kg
Polipropylene Pump	34,0 kg
Wetted Materials (pump body, diaphrams, valves, seats )
Pump Manifolds and Covers	PP, PVDF, SS316, Aluminyum
Ball Valves	PTFE (Teflon), Acetal, Buna-N, 316SS, Geolast, Santoprene, FKM (Viton), TPE(Hytrel),
Valve Seats	Acetal, Aluminium, Buna-N, 316SS, Geolast, Santoprene, FKM (Viton), TPE(Hytrel), PVDF, Polipropylene
Diaphrams Materials	PTFE (Teflon ), Santoprene, FKM (Viton), Buna-N (NBR), Geolast, TPE (Hytrel)
Sound Level
At Max Flow and Pressure	74.0 dBa ( max)

* The specified performance values are specified for water under ideal conditions and may vary depending on the suction-discharge line conditions, inlet air pressure and the properties of the transferred fluid.

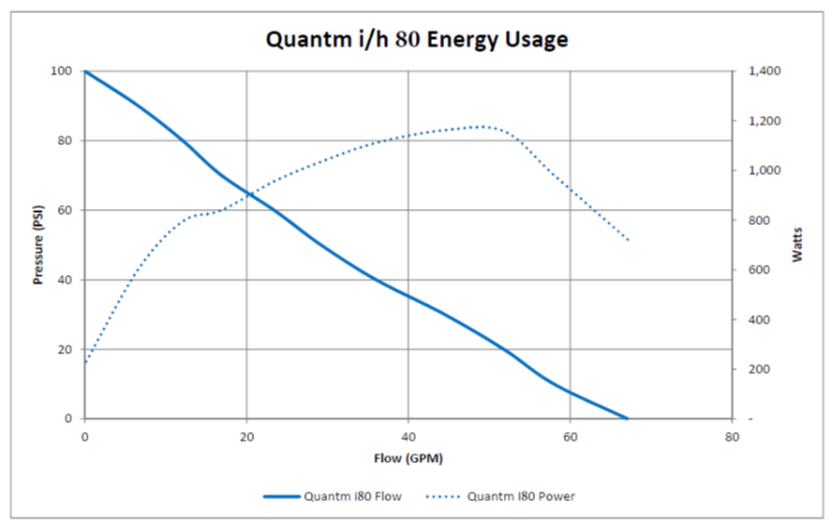

Graco QUANTM i80 Electric Operated Diaphragm Pump Performance Details

Advantages of Graco Quantm Electric Diaphragm Pumps

� Standard and Ex-proof ATEX approved models are available.

� Packing, coupling, felt etc. consumables are not existing.

� There is no risk of damage in case of dry/idle operation.

� In case the discharge line is closed, the pump stops automatically without being damaged.

� It can be operated in different flow and pressure ranges by changing the pump speed with the standard adjustment lever on the pump.

� Pump electric motor and control structure are suitable for external 4-20 MA and PLC control and are standard.

� No tight fitting, sliding or rotating parts.

� It is very easy to disassemble-assemble and maintain.

� Maintenance costs, part prices are cheap.

� If selected according to chemical compatibility, wetted parts has very long life.

� It can work at temperatures up to 80 ⁰C.

� They can be used in portable applications due to their small-compact nature.

� Viscous fluid products and liquids with high solid ratio can be transferred.

How Do Graco Quantm Electric Operated Double Diaphragm Pumps Work?

As same for the air operating double diaphragm pumps, electric operated double diaphragm pumps also have two flexible diaphragms and four ball valves that move back and forth like a suction pump. While one of the diaphragms draws fluid in the pump, the other diaphragm loads the fluid in the discharge line to the discharge line. In the meantime, the check valves in the lower and upper manifolds open and close diagonally alternately. Diaphragms act as an insulating wall between air and fluid.
