Finish Thompson Db Series Mag Drive Sealless Centrifugal Pumps

Finish Thompson DB Series magnetically driven centrifugal pumps set new standards for fluids with hydraulic efficiency and chemical abrasiveness. It doesn't matter acid or alkali, it responds easily to high pressure and high flow demands with its superior design and fluid dynamics technology to meet your expectations for the transfer of all kinds of demanding chemicals.
Finish Thompson DB series magnetic pumps are the result of careful and thorough R & D studies and therefore have a high efficiency to reduce energy consumption and operating costs over the long lifetime of the pump.

Finish Thompson DB Series Magnetic Coupled Pumps Overview

Made of polypropylene or PVDF material, DB Series magnetic coupling pumps operate durably in the most corrosive environments. It can even work dry without being damaged. For this feature, the pump must be equipped with a carbon bearing.
DB series pumps, which are concrete indicators of technological progress, have many advantages over other magnetic pumps on the market in terms of precision, performance and reliability.
In the transfer of explosive and flammable fluids and requirements for use in such environments, ATEX norms are provided with PVDF models and ex-proof electric motor, despite being a plastic pump.

Finish Thompson DB Series Magnetic Coupled Pump Technical Data

General Performance Overview
Maximum Fluid Pressure	45 m
Maximum Capacity	48 m³/hour
Maximum Pump Speed	50 Hz � 2900 rpm / 60 Hz � 3450 rpm
Maximum Solid Particle Size	0,4mmor 100 micron
Maximum Operating Temperature	PPmodels - 82�C / PVDFmodels - 104�C
Motor Power *	0,09 � 7,5 kw
Connection Types**	Bsp or npt thread, flange or union
Maximum Density	1,84 gr/cm³
Maximum suggested viscosity	150 cP ( mPas )
Efficiency	Up to max %70
Wetted Materials
Casing and Impeller	Glass reinforced polypropylene, carbon fiber reinforced pvdf
O-ring & elastomers	FKM ( Viton ), EPDM asstandard, Optional Simriz and Kalrez
Bearing	Carbon as standart PTFE, Alumina ceramic or silicon carbide optional
Shaft	Alumina ceramic as standard Hastalloy C or Silicone carbide optional

* Motor power should be determined from the pump data sheets according to the required performance values.
** Supplied as bsp or npt thread as standard, flange or union connections have price difference.

Why Magnetic Coupled Pump?

Since conventional centrifugal chemical pumps have wear-and-tear seals, they require high-tech solutions and expensive packing design, especially in aggressive or crystalline chemicals, to operate them reliably.
In addition, maintenance work at regular intervals significantly reduces their availability for the enterprise. The magnetic coupling - non-sealed pumps have the advantage of hermetically sealed design and maintenance-free.
Finish Thompson magnetic coupling pumps use the Neodymium magnet structure with the highest quality standards in the market, and the drive from the electric motor is transmitted to the pump with the principle of magnetization. The externally rotating drive magnet transmits motor power without contact to the internal magnet and thus to the fan. This means that a continuous shaft is not required, and therefore there is no wear shaft seal towards the motor. The pump housing and the motor-drive unit are completely airtight.
The result is maintenance-free pumps with no leakage.

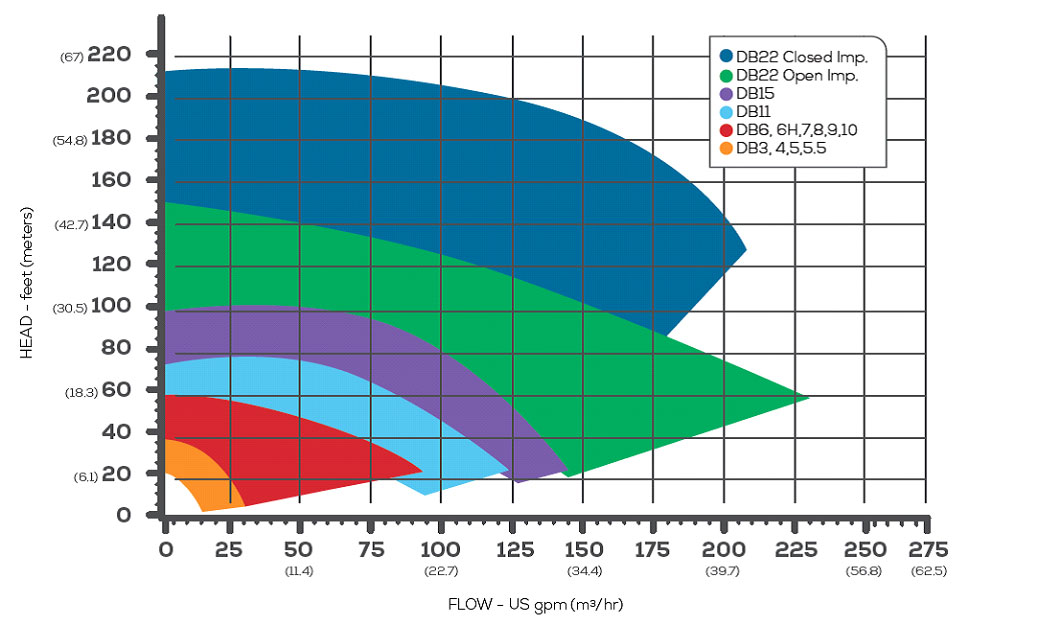

FINISH THOMPSON DB SERIES MAG DRIVE PUMPS PERFORMANCES
Model	Connection Size		Maximum Capacity	Maximum Head	Maximum Motor Power
Model	In	Out	( m³/hr )	(m)	(kW)
DB3	1"	1/2"	2,6	4,5	0,18
DB4	1"	1/2"	3,4	6,1	0,25
DB5	1"	1/2"	3,6	7,5	0,37
DB5.5	1"	3/4"	5,5	6,6	0,37
DB6	1"	1"	9,2	10	0,37
DB6H	1"	1"	9,5	15	0,37
DB7	1 1/2"	1 1/2"	16	10	0,75
DB8	1 1/2"	1"	15	14	1,1
DB9	1"	1"	20	12	0,75
DB10	1 1/2"	1 1/2"	22	14	2,2
DB11	2"	1 1/2"	26	22	4,0
DB15	2"	1 1/2"	29	27	4,0
DB22	2"	2"	43	41	7,5

-The values given in the table are maximum possible capacity and head values. When performing pump selection, the individual performance curves must be checked and the chemical properties must be taken into consideration.
-The values given are for preliminary information for selection of Finish Thompson magnetic coupling pumps.

Finish Thompson Magnetic Coupled Pump Advantages

From 10 l / min to 715 l / min. capacity range, from 3m to 41m head, 220-240V monophase or 380-400V three-phase motor, input and output connection options with threaded, flanged or unios and non-metal magnetic driven chemical process pumps offers a wide range of products to users.
Polypropylene or PVDF body alternatives are compatible with a wide range of chemicals.
Patented �Non-Contact System� mechanism can work under difficult conditions. Thanks to the specially manufactured magnets, the contact of the magnetic capsule and the pusher ring of the rear housing is prevented, thereby preventing the parts of the equipment from melting due to excessive heat generation.
Patented Self-Heat Emitting Structure �design; Thanks to the heat-distribution holes placed in the propeller and magnetic capsule in equal proportions, it reduces the formation of the heat generated during the rotation of the shaft and bearings by circulating the liquid around it. Thermal deformations and meltings are prevented in this way.
Optionally, PVDF models can have ex-proof electric motors and Atex certification.
