For the cement production facility operating in Mediterranean region, we have realized a complete waste oil pumping process solution by using many types of pumps from our portfolio for the entire process that starts with the accepting of waste oils from various sources outside the the facility by tankers and ends with oil burning in the mill.

1.Step:

Waste oil brought by tanker from outside the facility or various tanks within the plant for processing and burning in the millis transferred to the factory stock tank by Graco Husky 3300 series 3 ”stainless steel body air operated diaphragm pump. The Graco Husky 3300 series air operated double diaphragm pump has a maximum capacity of 1130 lt / min and a working pressure of max 8.6 bar.

Graco Husky 3300 series double diaphragm air operated pumps are high performance and trouble-free pneumatic pumps with a wide range of applications in many industries.

There are metal and plastic material alternatives for the pump body, it is ATEX certified.

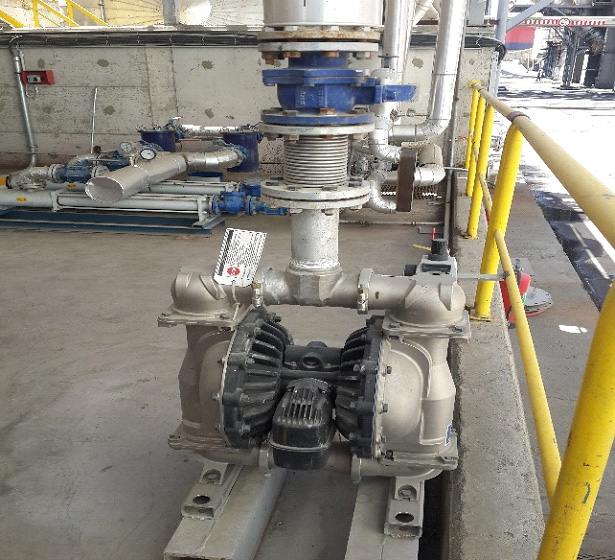

GRACO HUSKY AIR OPERATED DOUBLE DISPHRAGM PUMP FOR STOCK TANK TRANSFER

2.Step:

Bellin PL series Lobe pumps were used for both tank to tank transfer in the facility and transfer of waste oils from tankers to factory stock tanks.

Bellin PLGP Series Lobe Pumps have different models with a maximum capacity of 180 m3 / h and a maximum pressure range of 10 bar.

Bellin Lobe pumps have been developed especially for applications such as wastewater, medium and high viscosity fluid transfer with their simple and compact design, easy and on-site maintenance features, economical spare parts, and the ability to pass large solid particles.

Bellin lobe pumps are positive displacement, can work in both directions, provide a smooth and pulse-free flow, and can produce solutions for many demanding pumping needs with a variety of different materials and accessories.

It has a cast steel or stainless steel body, different elastomer lobe designs and material structures depending on the process.

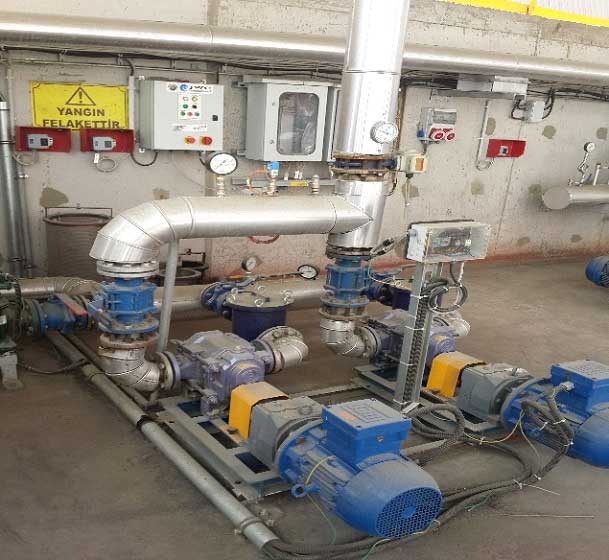

BELLIN LOBE PUMPS FOR STOCK TANK TRANSFER

3.Step :

The waste oil stored in the facility's stock tanks is transferred to the mills for combustion with Bellin monopumps.

Bellin Monopumps have different models with a maximum capacity of 260 m3 / h and a maximum pressure range of 30 bar.

Bellin L and N series mono pumps are process pumps with eccentric screw design used in transfer, dosing, circulation, loading or unloading applications of low or high viscosity fluids in domestic and industrial applications.

Bellin mono pumps have positive displacement design, provide a very smooth pulseless flow, with a wide range of different materials and accessories, can produce solutions for many demanding harsh pumping needs.

Stainless steel and cast iron body alternatives are available.

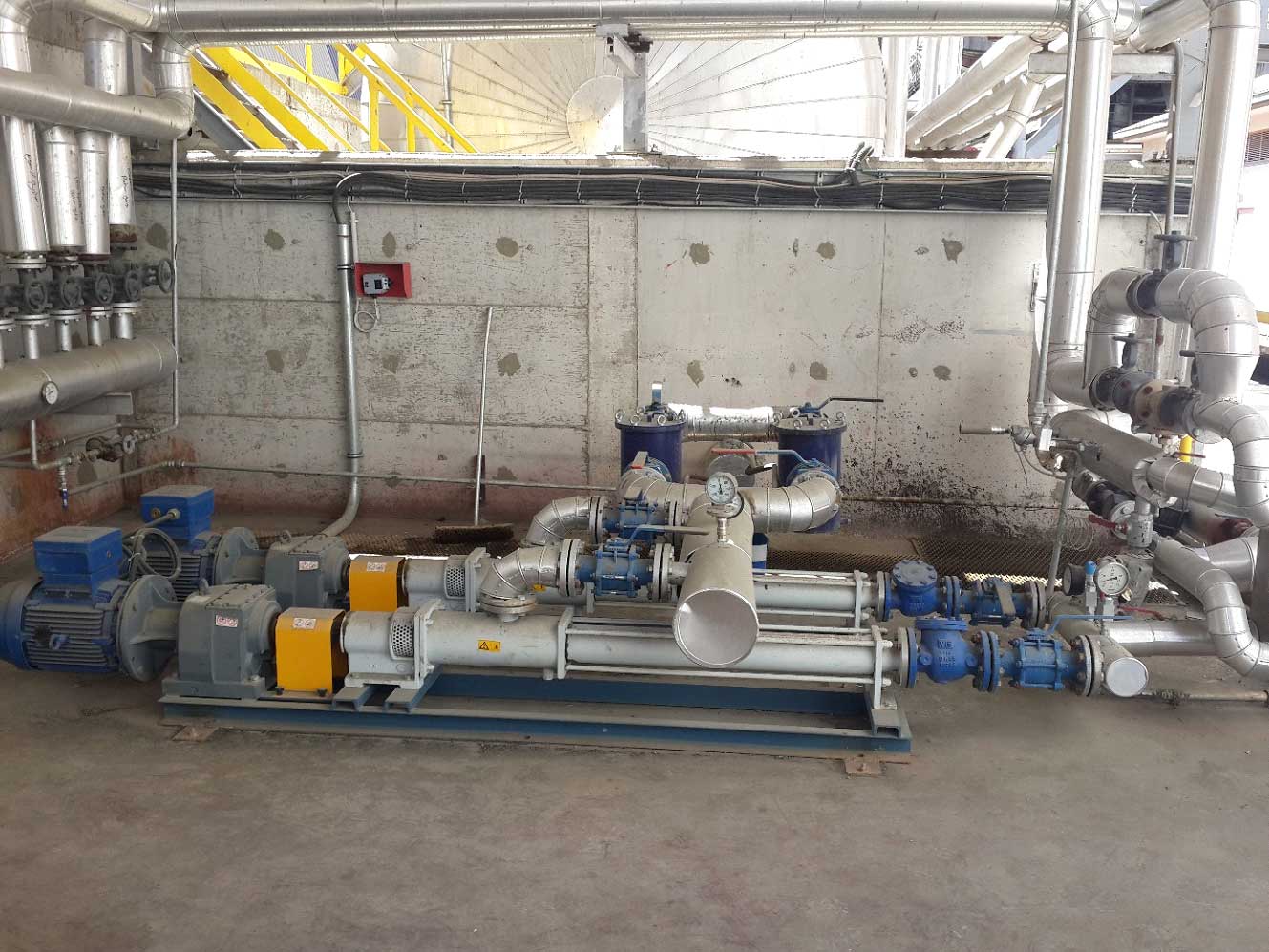

Bellin Monopump for Transferring Waste  Oil to the Mill

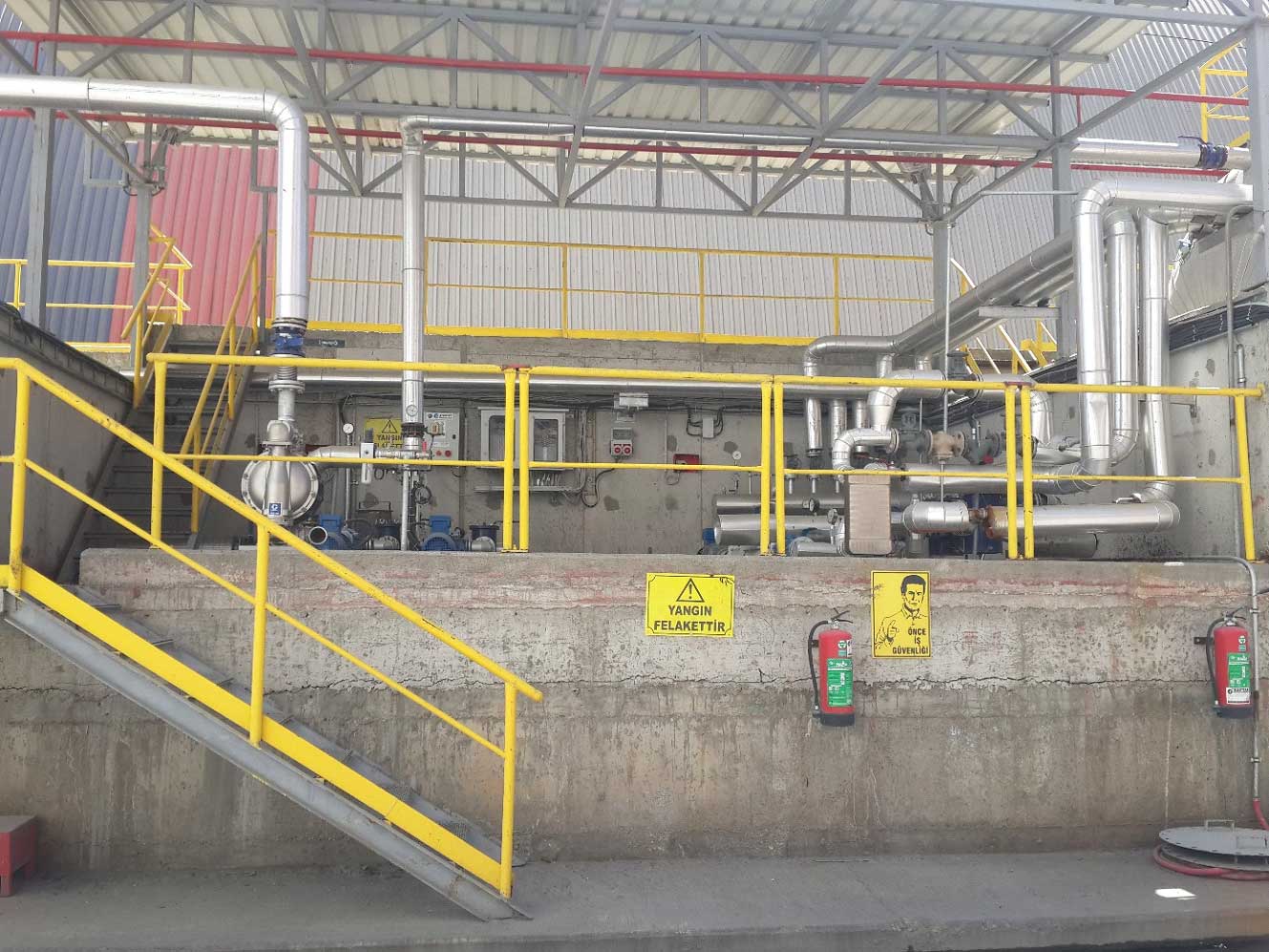

Waste Oil Collection Area General View
